Running Autometa¶

Data preparation¶

Before you run Autometa, you need to have assembled your shotgun metagenome. The following workflow is recommended:

Trim adapter sequences from the reads. We prefer to use Trimmomatic, but you can go ahead and use any tool of your preference.
Quality check of reads to make sure that the adapters have been removed, we use FastQC for this.
Assemble the trimmed reads. We recommend using MetaSPAdes which is a part of the SPAdes package to assemble the trimmed reads but you can use any other assembler as well.
An optional thing to do here would be to check the quality of your assembly as well. This would give you a variety of assembly statistics one of which is N50 which will be useful in selecting the cutoff value during the Autometa length-filter step. We tend to use metaQuast for this (use --min-contig 1 option to get an accurate N50).

Note

If you use SPAdes then Autometa can use the k-mer coverage information in the contig names. If you have used any other assembler, then you first have to make a coverage table.

Fortunately, Autometa can construct this table for you with: autometa-coverage. Use --help to get the complete usage.

Nextflow walkthrough¶

Why nextflow¶

Nextflow helps Autometa produce reproducible results while allowing the pipeline to scale across different platforms and hardware.

System Requirements¶

Nextflow

Currently the nextflow pipeline only works with Docker so Docker must be installed on your system Get Docker. We do plan on removing this Docker dependency.

Nextflow runs on any Linux compatible system or MacOS with Java installed.

Quick Start¶

Installation¶

Using conda install nf-core and nextflow into an environment (here called ‘autometa-nf’)

conda create -c conda-forge -c bioconda --name autometa-nf python=3 nf-core nextflow -y

Once it finishes installing be sure to active the environment:

conda activate autometa-nf

Lastly, download the pipeline from GitHub using nextflow

nextflow pull https://github.com/KwanLab/Autometa -r main

Launching Autometa¶

Run the pipeline using the command below.

Note: Unless specified using the parameters (--interim_dir, --outdir, and --tracedir), intermediate and temporary files will be created relative to the directory this is executed from.

nf-core launch KwanLab/Autometa

You will then be provided two “launch method” options: “Web based” or “Command line”. While it is possible to use the command line version, it is preferred and easier to use the Web based GUI. Use the arrow keys to select one or the other and then press return/enter.

Note: You can use tmux or screen in case you want to exit the window or disconnect from the server.

Set autometa parameters with web based GUI¶

The GUI will present all available parameters, though some extra parameters may be hidden. Toggle “Show hidden params” on the right side of the page to reveal hidden parameters.

The only mandatory parameters are --input which is the path to your input metagenome’s nucleotide FASTA file, and -profile.

Currently the availble options for -profile are

standard: runs all process jobs locally. If you use slurm, don’t use this.
basic_slurm: submits all process jobs into the slurm queue. See using-slurm: before using
docker: is currently required

An example input for locally-executed jobs would be

-profile: standard,docker

An example input for slurm-executed jobs would be

-profile: basic_slurm,docker

Running the pipeline¶

After you are finished double-checking your parameter settings, click “Launch” at the top right of web based GUI page, or “Launch workflow” at the bottom of the page.

Advanced Nextflow¶

Multiple Inputs¶

You can also input multiple asseblies at once with the help of wildcards. In the below example all the files with extension “fasta” would be taken as input by nextflow.

// Find this section of code in parameters.config
params.metagenome = "$HOME/tutorial/test_data/*.fna"
params.interim = "$HOME/tutorial/interim/"
params.processed = "$HOME/tutorial/processed/"

Note

Wildcard characters will only be interpreted when “double quotes” are used
If the interim and processed directories doens’t exist, nextflow would generate them

Database directory¶

Autometa uses the following NCBI databses throughout its pipeline:

Non-redundant nr database
prot.accession2taxid.gz
nodes.dmp, names.dmp and merged.dmp from taxdump tarball

If you are running autometa for the first time you’ll have to download these databases. Use autometa-update-databases --update-ncbi. This will download the databases to the default path. You can check the default paths using autometa-config --print. If you need to change the default download directory you can use autometa-config --section databases --option ncbi --value <path/to/new/ncbi_database_directory>. See autometa-update-databases -h and autometa-config-h for full list of options.

In your parameters.config file you also need to specify the directory where the different databases are present. Make sure that the directory path contains the following databases:

Diamond formatted nr file => nr.dmnd
Extracted files from tarball taxdump.tar.gz
prot.accession2taxid.gz

// Find this section of code in parameters.config
// Update this path to folder with all NCBI databases
params.single_db_dir = "/Autometa/autometa/databases/ncbi"

CPUs, Memory, Disk¶

Like nf-core pipelines, we have set some automatic defaults for Autometa’s processes. These are dynamic and each process will try a second attempt using more resources if the first fails due to resources. Resources are always capped by the parameters (show with defaults):

-max_cpus = 2
-max_memory = 6.GB
-max_time = 48.h

The best practice to change the resources is to create a new config file and point to it at runtime by adding the flag -c path/to/config_file

For example, to give all resource-intensive jobs more memory, create a file called overwrite_config.config and insert

process {
  withLabel:process_high {
    memory = 200.GB
  }
}

Then your command to run the pipeline (assuming you’ve already run nf-core launch KwanLab/Autometa which created a nf-params.json file) would look something like:

nextflow run KwanLab/Autometa -params-file nf-params.json -c overwrite_config.config

For addtional information and examples see “Tuning workflow resources” here

Additional autometa parameters¶

Up to date descriptions and default values of Autometa’s nextflow parameters can be viewed using the following command:

nextflow run KwanLab/Autometa -r main --help

You can also adjust other pipeline parameters that ultimately control how the binning is performed.

params.length_cutoff : Smallest contig you want binned (default is 3000bp)

params.kmer_size : kmer size to use

params.norm_method : Which normalization method to use. See Advanced Usage section for deails

params.pca_dimensions : Number of dimensions of which to reduce the initial k-mer frequencies matrix (default is 50). See Advanced Usage section for deails

params.embedding_method : Choices are “sksne”, “bhsne”, “umap” (default is bhsne) See Advanced Usage section for deails

params.embedding_dimensions : Final dimensions of the kmer frequencies matrix (default is 2). See Advanced Usage section for deails

params.kingdom : Bin contigs belonging to this kingdom. Choices are “bacteria” and “archaea” (default is bacteria).

params.clustering_method : Cluster contigs using which clustering method. Choices are “dbscan” and “hdbscan” (default is “dbscan”). See Advanced Usage section for deails

params.binning_starting_rank : Which taxonomic rank to start the binning from. Choices are “superkingdom”, “phylum”, “class”, “order”, “family”, “genus”, “species” (default is “superkingdom”). See Advanced Usage section for deails

params.classification_method : Which clustering method to use for unclustered recruitment step. Choices are “decision_tree” and “random_forest” (default is “decision_tree”). See Advanced Usage section for deails

params.completeness : Minimum completeness needed to keep a cluster (default is atleast 20% complete). See Advanced Usage section for deails

params.purity : Minimum purity needed to keep a cluster (default is atleast 95% pure). See Advanced Usage section for deails

params.cov_stddev_limit : Which clusters to keep depending on the covergae std.dev (default is 25%). See Advanced Usage section for deails

params.gc_stddev_limit : Which clusters to keep depending on the GC% std.dev (default is 5%). See Advanced Usage section for deails

Customizing Autometa’s Scripts¶

In case you want to tweak some of the scripts, run on your own scheduling system or modify the pipeline you can clone the repository and then run nextflow directly from the scripts as below: .. code-block:: bash

# Clone the autometa repository into current directory git clone git@github.com:KwanLab/Autometa.git # Modify some code # Then run nextflow nextflow run $HOME/Autometa/nextflow

Without docker¶

Useful options¶

-c : In case you have configured nextflow with your executor (see Configure nextflow with your ‘executor’) and have made other modifications on how to run nextflow using your nexflow.config file, you can specify that file using the -c flag

To see all of the command line options available you can refer to nexflow CLI documentation

Resuming the workflow¶

One of the most powerful features of nextflow is resuming the workflow from the last completed process. If your pipeline was interrupted for some reason you can resume it from the last completed process using the resume flag (-resume). Eg, nextflow run KwanLab/Autometa -params-file nf-params.json -c my_other_parameters.config -resume

Execution Report¶

After running nextflow you can see the execution statistics of your autometa run, including the time taken, CPUs used, RAM used, etc separately for each process. Nextflow would generate a summary report, a timeline report and a trace report automatically for you in the "${params.tracedir}/pipeline_info directory ("${params.tracedir} defaults to autometa_tracedir). You can read more about these execution reports here.

Workflow Visualized¶

You can also visualize the entire workflow ie. create the DAG from the written DOT file. Install Graphviz and do dot -Tpng < pipeline_info/autometa-dot > autometa-dag.png to get the in the png format.

Configure nextflow with your ‘executor’¶

For nextflow to run the Autometa pipeline through a job scheduler you will need to update the respective ‘profile’ section in nextflow’s config file. Each ‘profile’ may be configured with any available scheduler as noted in the nextflow executors docs. By default nextflow will use your local computer as the ‘executor’. The next section briefly walks through nextflow executor configuration to run with the slurm job scheduler.

We have prepared a template for nextflow.config which you can access from our GitHub repository using this link. Go ahead and copy this file to your desired location and open it in your favorite text editor (eg. Vim, nano, VSCode, etc).

SLURM¶

This allows you to run the pipeline using the SLURM resource manager. To do this you’ll first needed to identify the slurm partition to use. You can find the available slurm partitions by running sinfo. Example: On running sinfo on our cluster we get the following:

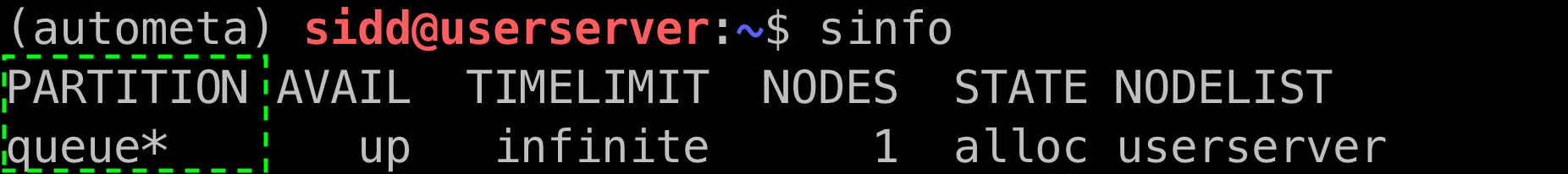

Screen shot of ``sinfo`` output showing ``queue`` listed under partition

The slurm partition available on our cluster is queue. You’ll need to update this in nextflow.config.

Todo

Change the path to nextflow.config after the merge.

// Find this section of code in nextflow.config
}
cluster {
process.executor = "slurm"
// queue is the slurm partition to use in our case
// Set SLURM partition with queue directive.
process.queue = "queue" // <<-- change this to whatever your partition is called
// See https://www.nextflow.io/docs/latest/executor.html#slurm for more details.
}

More parameters that are available for the slurm executor are listed in the nextflow executor docs for slurm.

HTCondor¶

This allows you to run the pipeline using the HTCondor resource manager. To do this you’ll need to enable the HTCondor executor to condor value in the nextflow.config.

// Find this section of code in nextflow.config
}
chtc {
    process.executor = "condor"
    // See https://www.nextflow.io/docs/latest/executor.html#htcondor for more configuration options.
}

More parameters that are available for the htcondor executor are listed in the nextflow executor docs for HTCondor.

Note

The pipeline must be launched from a node where the condor_submit command is available, that is, in a common usage scenario, the cluster head node.
The HTCondor executor for Nextflow does not support at this time the HTCondor ability to transfer input/output data to the corresponding job computing node. Therefore the data needs to be made accessible to the computing nodes using a shared file system directory from where the Nextflow workflow has to be executed (or specified via the -w option).

Todo

Below python specific maybe there should be two “running…” files, one for nextflow and one for python?

Running modules¶

Many of the Autometa modules may be run standalone.

Simply pass in the -m flag when calling a script to signify to python you are running an Autometa module.

I.e. python -m autometa.common.kmers -h

Running functions¶

Many of the Autometa functions may be run standalone as well. It is same as importing any other python function.

from autometa.common.external import samtools

samtools.sort(sam=<path/to/sam/file>, out=<path/to/output/file>, nproc=4)
